Manage volumes and volume types¶

Volumes are the Block Storage devices that you attach to instances to enable persistent storage. Users can attach a volume to a running instance or detach a volume and attach it to another instance at any time. For information about using the dashboard to create and manage volumes as an end user, see the OpenStack End User Guide.

As an administrative user, you can manage volumes and volume types for users in various projects. You can create and delete volume types, and you can view and delete volumes. Note that a volume can be encrypted by using the steps outlined below.

Create a volume type¶

Log in to the dashboard and select the admin project from the drop-down list.
On the Admin tab, open the System tab and click the Volumes category.
Click the Volume Types tab, and click Create Volume Type button. In the Create Volume Type window, enter a name for the volume type.
Click Create Volume Type button to confirm your changes.

Note

A message indicates whether the action succeeded.

Create an encrypted volume type¶

Create a volume type using the steps above for Create a volume type.
Click Create Encryption in the Actions column of the newly created volume type.
Configure the encrypted volume by setting the parameters below from available options (see table):

Provider

Specifies the class responsible for configuring the encryption.

Control Location

Specifies whether the encryption is from the front end (nova) or the back end (cinder).

Cipher

Specifies the encryption algorithm.

Key Size (bits)

Specifies the encryption key size.
Click Create Volume Type Encryption.

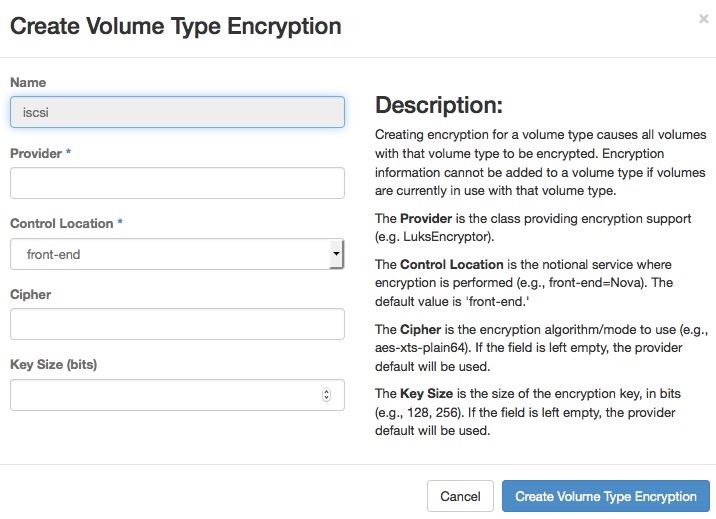

../_images/create_volume_type_encryption.png

Encryption Options

The table below provides a few alternatives available for creating encrypted volumes.

Encryption parameters	Parameter options	Comments
Provider	nova.volume.encryptors. luks.LuksEncryptor (Recommended)	Allows easier import and migration of imported encrypted volumes, and allows access key to be changed without re-encrypting the volume
Provider	nova.volume.encryptors. cryptsetup. CryptsetupEncryptor	Less disk overhead than LUKS
Control Location	front-end (Recommended)	The encryption occurs within nova so that the data transmitted over the network is encrypted
Control Location	back-end	This could be selected if a cinder plug-in supporting an encrypted back-end block storage device becomes available in the future. TLS or other network encryption would also be needed to protect data as it traverses the network
Cipher	aes-xts-plain64 (Recommended)	See NIST reference below to see advantages*
Cipher	aes-cbc-essiv	Note: On the command line, type ‘cryptsetup benchmark’ for additional options
Key Size (bits)	512 (Recommended for aes-xts-plain64. 256 should be used for aes-cbc-essiv)	Using this selection for aes-xts, the underlying key size would only be 256-bits*
Key Size (bits)	256	Using this selection for aes-xts, the underlying key size would only be 128-bits*

* Source NIST SP 800-38E

Note

To see further information and CLI instructions, see Create an encrypted volume type in the OpenStack Configuration Reference.

Delete volume types¶

When you delete a volume type, volumes of that type are not deleted.

Log in to the dashboard and select the admin project from the drop-down list.
On the Admin tab, open the System tab and click the Volumes category.
Click the Volume Types tab, select the volume type or types that you want to delete.
Click Delete Volume Types button.
In the Confirm Delete Volume Types window, click the Delete Volume Types button to confirm the action.

Note

A message indicates whether the action succeeded.

Delete volumes¶

When you delete an instance, the data of its attached volumes is not destroyed.

Log in to the dashboard and select the admin project from the drop-down list.
On the Admin tab, open the System tab and click the Volumes category.
Select the volume or volumes that you want to delete.
Click Delete Volumes button.
In the Confirm Delete Volumes window, click the Delete Volumes button to confirm the action.

Note

A message indicates whether the action succeeded.
