Install and configure a share node running Debian

This section describes how to install and configure a share node for the Shared File Systems service. For simplicity, this configuration references one storage node with the generic driver managing the share servers. The generic backend manages share servers using compute, networking and block services for provisioning shares.

Note that installation and configuration vary by distribution. This section describes the instructions for a share node running a Debian distribution.

Install and configure components

  1. Install the packages:

    # apt-get install manila-share python3-pymysql

  2. Edit the /etc/manila/manila.conf file and complete the following actions:

    • In the [database] section, configure database access:

      [database]
...
connection = mysql+pymysql://manila:MANILA_DBPASS@controller/manila

      Replace MANILA_DBPASS with the password you chose for the Shared File Systems database.

  1. Complete the rest of the configuration in manila.conf.

    • In the [DEFAULT] section, configure RabbitMQ message queue access:

      [DEFAULT]
...
transport_url = rabbit://openstack:RABBIT_PASS@controller

      Replace RABBIT_PASS with the password you chose for the openstack account in RabbitMQ.

    • In the [DEFAULT] section, set the following config values:

      [DEFAULT]
...
default_share_type = default_share_type
rootwrap_config = /etc/manila/rootwrap.conf

      Important

      The default_share_type option specifies the default share type to be used when shares are created without specifying the share type in the request. The default share type that is specified in the configuration file has to be created with the necessary required extra-specs (such as driver_handles_share_servers) set appropriately with reference to the driver mode used. This is explained in further steps.

    • In the [DEFAULT] and [keystone_authtoken] sections, configure Identity service access:

      [DEFAULT]
...
auth_strategy = keystone

[keystone_authtoken]
...
memcached_servers = controller:11211
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = manila
password = MANILA_PASS

      Replace MANILA_PASS with the password you chose for the manila user in the Identity service.

    • In the [DEFAULT] section, configure the my_ip option:

      [DEFAULT]
...
my_ip = MANAGEMENT_INTERFACE_IP_ADDRESS

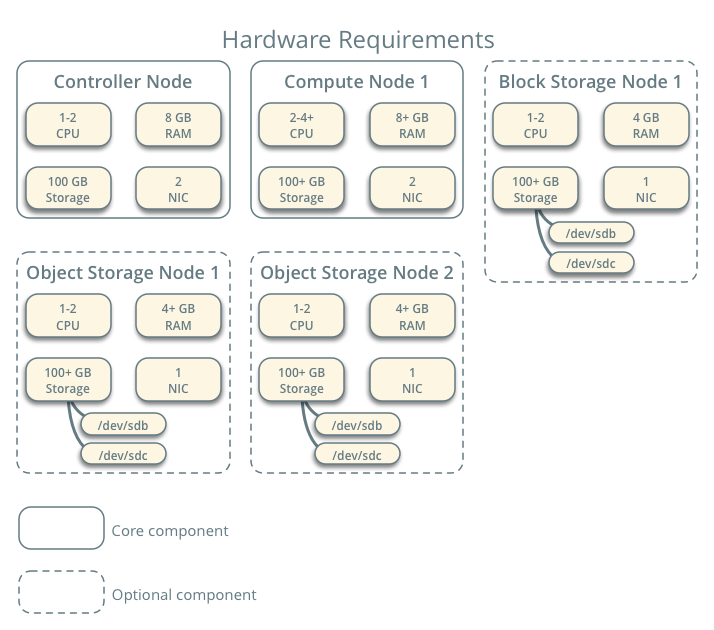

      Replace MANAGEMENT_INTERFACE_IP_ADDRESS with the IP address of the management network interface on your share node, typically 10.0.0.41 for the first node in the example architecture shown below:

      Hardware requirements

      Hardware requirements

    • In the [oslo_concurrency] section, configure the lock path:

      [oslo_concurrency]
...
lock_path = /var/lib/manila/tmp

Two driver modes

The share node can support two modes, with and without the handling of share servers. The mode depends on driver support.

Option 1

Deploying the service without driver support for share server management. In this mode, the service does not do anything related to networking. The operator must ensure network connectivity between instances and the NAS protocol based server.

This tutorial demonstrates setting up the LVM driver which creates LVM volumes on the share node and exports them with the help of an NFS server that is installed locally on the share node. It therefore requires LVM and NFS packages as well as an additional disk for the manila-share LVM volume group.

This driver mode may be referred to as driver_handles_share_servers = False mode, or simply DHSS=False mode.

Option 2

Deploying the service with driver support for share server management. In this mode, the service runs with a back end driver that creates and manages share servers. This tutorial demonstrates setting up the Generic driver. This driver requires Compute service (nova), Image service (glance) and Networking service (neutron) for creating and managing share servers; and Block storage service (cinder) for creating shares.

The information used for creating share servers is configured with the help of share networks.

This driver mode may be referred to as driver_handles_share_servers = True mode, or simply DHSS=True mode.

Warning

When running the generic driver in DHSS=True driver mode, the share service should be run on the same node as the networking service. However, such a service may not be able to run the LVM driver that runs in DHSS=False driver mode effectively, due to a bug in some distributions of Linux. For more information, see LVM Driver section in the Configuration Reference Guide.

Choose one of the following options to configure the share driver:

Shared File Systems Option 1: No driver support for share servers management

For simplicity, this configuration references the same storage node configuration for the Block Storage service. However, the LVM driver requires a separate empty local block storage device to avoid conflict with the Block Storage service. The instructions use /dev/sdc, but you can substitute a different value for your particular node.

Prerequisites

Note

Perform these steps on the storage node.

  1. Install the supporting utility packages:

    • Install LVM and NFS server packages:

      # apt-get install lvm2 nfs-kernel-server

  1. Create the LVM physical volume /dev/sdc:

    # pvcreate /dev/sdc
Physical volume "/dev/sdc" successfully created

  2. Create the LVM volume group manila-volumes:

    # vgcreate manila-volumes /dev/sdc
Volume group "manila-volumes" successfully created

    The Shared File Systems service creates logical volumes in this volume group.

  3. Only instances can access Shared File Systems service volumes. However, the underlying operating system manages the devices associated with the volumes. By default, the LVM volume scanning tool scans the /dev directory for block storage devices that contain volumes. If projects use LVM on their volumes, the scanning tool detects these volumes and attempts to cache them which can cause a variety of problems with both the underlying operating system and project volumes. You must reconfigure LVM to scan only the devices that contain the cinder-volume and manila-volumes volume groups. Edit the /etc/lvm/lvm.conf file and complete the following actions:

    • In the devices section, add a filter that accepts the /dev/sdb and /dev/sdc devices and rejects all other devices:

      devices {
...
filter = [ "a/sdb/", "a/sdc", "r/.*/"]

      Warning

      If your storage nodes use LVM on the operating system disk, you must also add the associated device to the filter. For example, if the /dev/sda device contains the operating system:

      filter = [ "a/sda/", "a/sdb/", "a/sdc", "r/.*/"]

      Similarly, if your compute nodes use LVM on the operating system disk, you must also modify the filter in the /etc/lvm/lvm.conf file on those nodes to include only the operating system disk. For example, if the /dev/sda device contains the operating system:

      filter = [ "a/sda/", "r/.*/"]

Configure components

  1. Edit the /etc/manila/manila.conf file and complete the following actions:

    • In the [DEFAULT] section, enable the LVM driver and the NFS protocol:

      [DEFAULT]
...
enabled_share_backends = lvm
enabled_share_protocols = NFS

      Note

      Back end names are arbitrary. As an example, this guide uses the name of the driver.

    • In the [lvm] section, configure the LVM driver:

      [lvm]
share_backend_name = LVM
share_driver = manila.share.drivers.lvm.LVMShareDriver
driver_handles_share_servers = False
lvm_share_volume_group = manila-volumes
lvm_share_export_ips = MANAGEMENT_INTERFACE_IP_ADDRESS

      Replace MANAGEMENT_INTERFACE_IP_ADDRESS with the IP address of the management network interface on your storage node. The value of this option can be a comma separated string of one or more IP addresses. In the example architecture shown below, the address would be 10.0.0.41:

      Hardware requirements

      Hardware requirements.

Shared File Systems Option 2: Driver support for share servers management

For simplicity, this configuration references the same storage node as the one used for the Block Storage service.

Note

This guide describes how to configure the Shared File Systems service to use the generic driver with the driver handles share server mode (DHSS) enabled. This driver requires Compute service (nova), Image service (glance) and Networking service (neutron) for creating and managing share servers; and Block storage service (cinder) for creating shares. The information used for creating share servers is configured as share networks. Generic driver with DHSS enabled also requires the tenant’s private network (where the compute instances are running) to be attached to a public router.

Prerequisites

Before you proceed, verify operation of the Compute, Networking, and Block Storage services. This options requires implementation of Networking option 2 and requires installation of some Networking service components on the storage node.

  • Install the Networking service components:

    # apt-get install neutron-plugin-linuxbridge-agent

Configure components

  1. Edit the /etc/manila/manila.conf file and complete the following actions:

    • In the [DEFAULT] section, enable the generic driver and the NFS protocol:

      [DEFAULT]
...
enabled_share_backends = generic
enabled_share_protocols = NFS

      Note

      Back end names are arbitrary. As an example, this guide uses the name of the driver.

    • In the [neutron], [nova], [cinder] and [glance] sections, enable authentication for those services:

      [neutron]
...
url = http://controller:9696
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
region_name = RegionOne
project_name = service
username = neutron
password = NEUTRON_PASS

[nova]
...
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
region_name = RegionOne
project_name = service
username = nova
password = NOVA_PASS

[cinder]
...
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
region_name = RegionOne
project_name = service
username = cinder
password = CINDER_PASS

[glance]
...
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
region_name = RegionOne
project_name = service
username = glance
password = GLANCE_PASS

    • In the [generic] section, configure the generic driver:

      [generic]
share_backend_name = GENERIC
share_driver = manila.share.drivers.generic.GenericShareDriver
driver_handles_share_servers = True
service_instance_flavor_id = 100
service_image_name = manila-service-image
service_instance_user = manila
service_instance_password = manila
interface_driver = manila.network.linux.interface.BridgeInterfaceDriver

      Note

      You can also use SSH keys instead of password authentication for service instance credentials.

      Important

      The service_image_name, service_instance_flavor_id, service_instance_user and service_instance_password are with reference to the service image that is used by the driver to create share servers. A sample service image for use with the generic driver is available in the manila-image-elements project. Its creation is explained in the post installation steps (See: Creating and using shared file systems).

Finalize installation

  1. Prepare manila-share as start/stop service. Start the Shared File Systems service including its dependencies:

    # service manila-share restart
