Masakari Monitors System Architecture

Masakari-monitors provides Virtual Machine High Availability (VMHA) service for OpenStack clouds by detecting the failure events such as VM unavailability, VM internal faults, provisioning process unavailability and nova-compute host failure. If it detect these events, it sends notifications to the masakari-api which in turn, delegates them to masakari-engine for further processing via novaclient and nova.

Masakari Components

The Masakari components described below are those which actually process the notifications received from Masakari-monitors:

  • DB: sql database for data storage for masakari, where all notifications received from monitors are getting stored.

  • masakari-api: component that receives notification from Masakari-monitors and delegates to masakari-engine.

  • masakari-engine: processes the notification request with the help of novaclient and nova.

Masakari Monitors Components

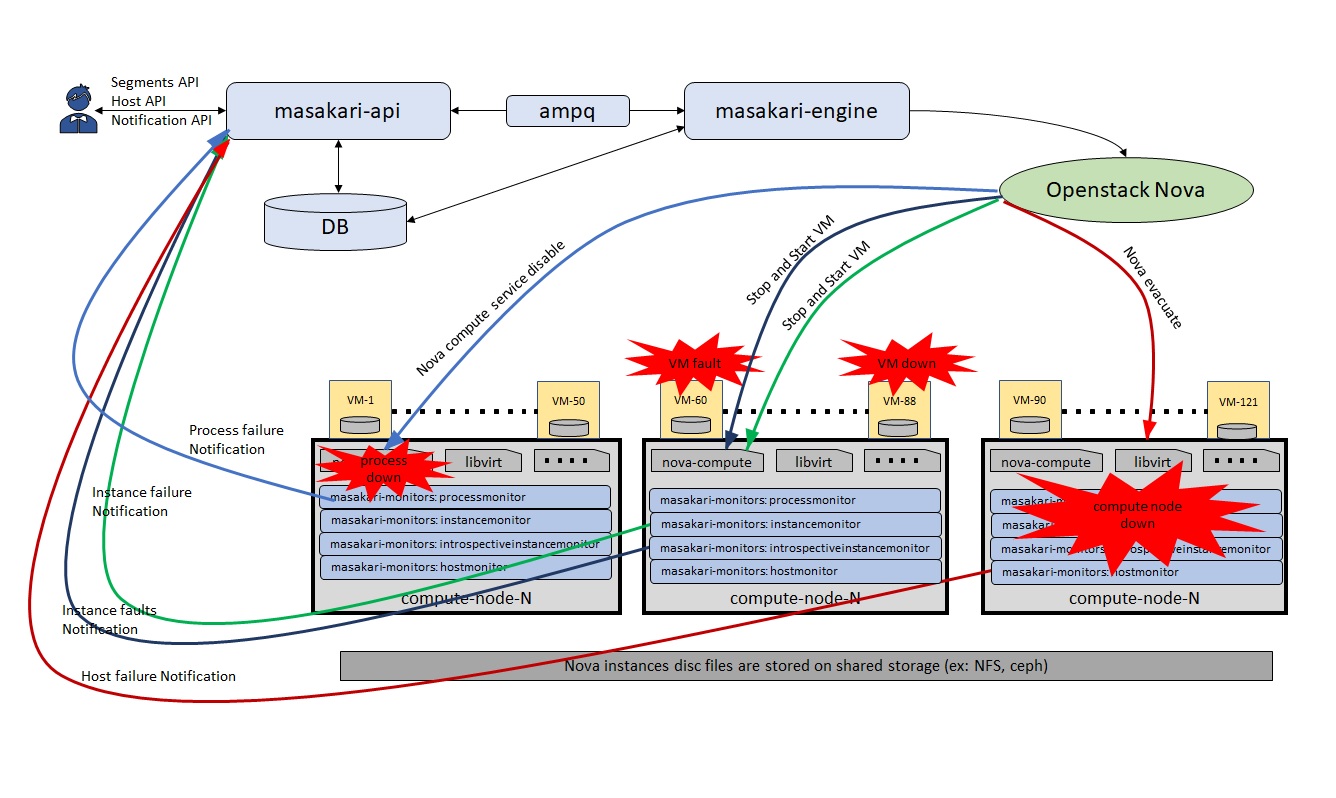

Below are Masakari-monitors’s key components.

../_images/masakari-monitors.jpg

  • masakari-instancemonitor: Detects the failure of VM/instance.

  • masakari-introspectiveinstancemonitor: Monitors the VMs, in order to detect, report and recover VMs from internal faults.

  • masakari-processmonitor: Detects the failure of process listed in process_list.yaml configuration file.

  • masakari-hostmonitor: Detects the nova-compute host failure.
